60 mm 3 phase 120W Black low temperature rise brushless DC motor for Solar equipment
Product description
The advantages of a brushless motor over brushed motors are high power-to-weight ratio, high speed, electronic control, and low maintenance.
Brushless motors find applications in such places as computer peripherals (disk drives, printers), hand-held power tools, and vehicles ranging
from model aircraft to automobiles. In modern washing machines, brushless DC motors have allowed replacement of rubber belts and gearboxes
by a direct-drive design.
Specifications of brushless motor
| Sensor | Hall sensor |
| Insulation Grade | Class B (130 degree) |
| IP Rate | IP40 |
| Operating Temperature | -10 degree to +50 degree(Non condensing) |
| Operating Humidity | 85% RH Max(Non condensing) |
| Operating Environment | No corrosive gas or dust No directly contact with water, oil, etc |
| Rated power supply | 48v DC |
| Rated output power | 120w |
| Poles number | 8 |
| Motor phase number | 3 |
| Rated torque | 0.47 N.m |
| Rated winding current | 5.7A |
| Voltage constant ±10% | 6.0 V/KRPM |
| Ph resistance ±10%@20 ℃ | 0.42Ohm |
| Ph inductance±30%@1KHZ 20 ℃ | 4.2mH |
| Moment of inertia | 480g.cm2 |
| Motor mass | 1.2kgs |

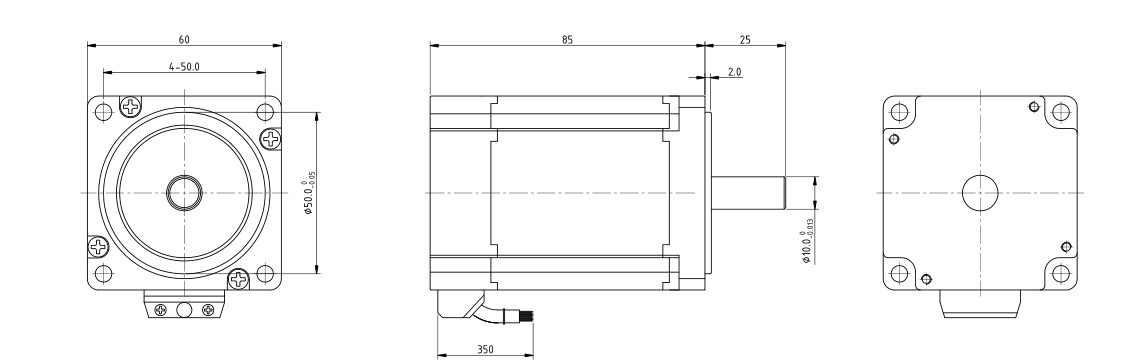

Mechnical dimension (Unit:mm)
Application:
BLDC motor for AGV
BLDC motor for Medical Equipment
BLDC motor for Automotive equipement
BLDC motor for solar energy equipment
BLDC motor for Automatic door, gate machine
Why choose us ?
a. Choose the raw material materials from the famous brand supplier in China or abroad
b. Each spare parts are controlled strictly in all the production process
c. High performance optimized design of the electromagnetic circuit, increasing the torque of the motor, lower the rising range of temperature on the motor, promote the motor running more stable.
d. Precise position control
e. Forward / reverse rotation, emergency stop and lock function
f. Effective angle and speed control
g.Mechanical size 100% meet the requirements of customer’s
h. Try best to create the solution for the customer’s specialized requirements, we also can provide door-to-door service
The features of our brushless motor
Wide range of power, torque and speed
High effeciency,low temperature rise,
Small volume
High Starting Torque
Smooth Running
Small vibration, low noise
The quality control of hybrid stepper motor in the all process
Raw material inspection
Inspecting according to the standard of testing raw material or the drawing
Monitoring and measurement in production process
Self checking-tested by QC-Batches production
Final checking and make experiment
All products should be through testing by the professional equipment
Can you provide us the following information ?
There are serveral important items: size, length of stepper motor, holding torque, voltage, current etc.After confirm some them and told us, we can send you the suitable one.
You can send us the model you are using, we can hep you find out the most suitable one.
Customer service
1. Before sign an offical contract with our customer , we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied within 24 hours.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4. One-year warranty to our display and one year waranty to spare parts.
5. Buyer can dispatch technician to our factory for free trainning before delivery.
6. For essential equipment failure, we will arrange our engineer director to local site to help trouble shooting,also provide online technical support for the whole life.
Product Tags:
|
|

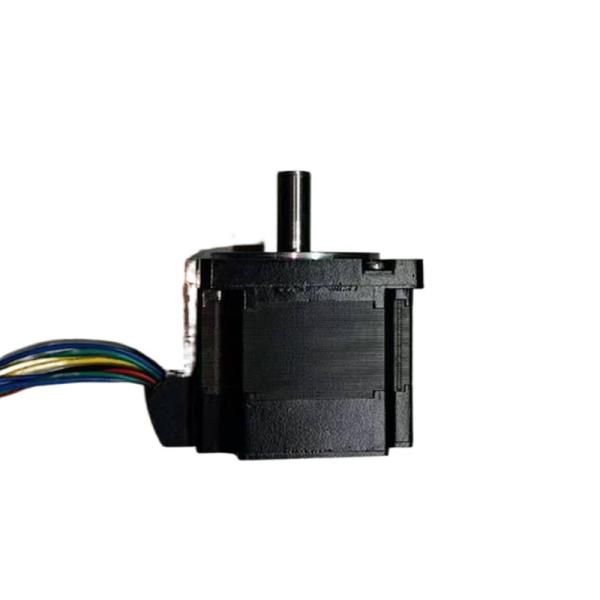

120 Watt Brushless DC Motor Images
|
